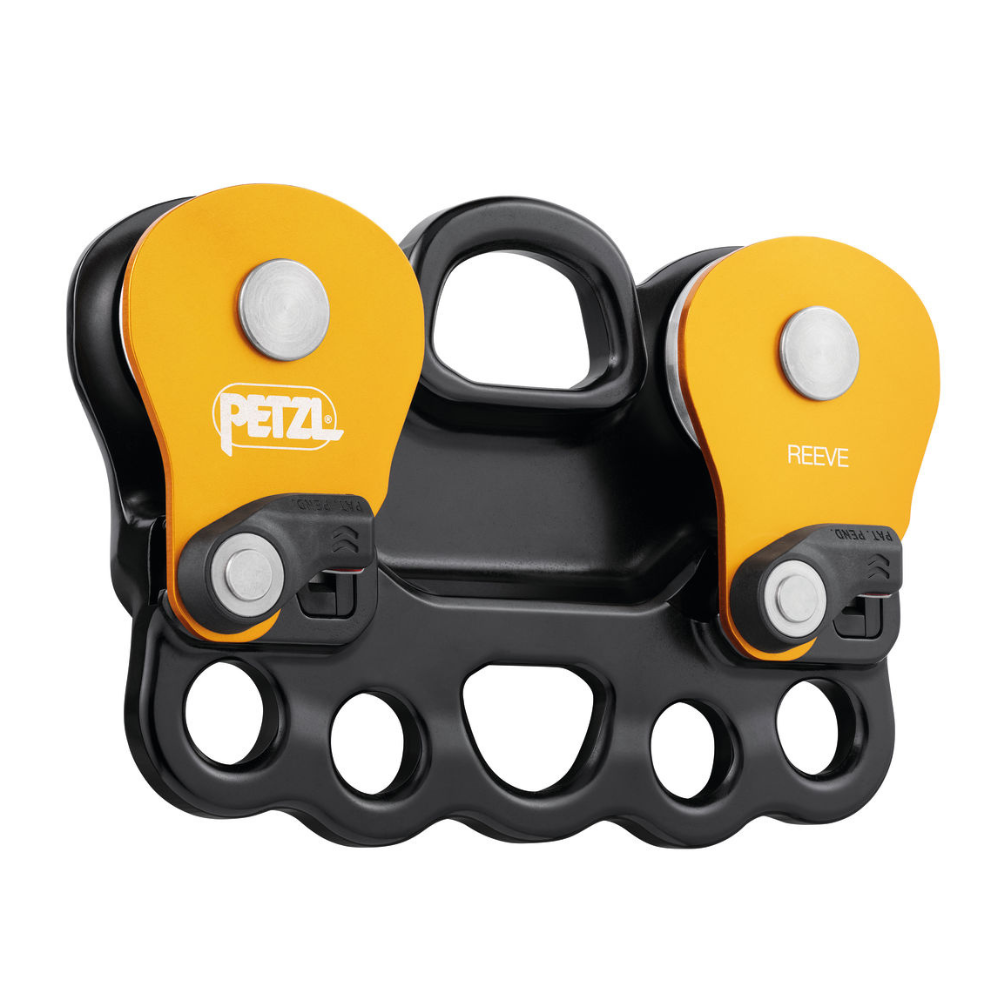

Petzl Reeve

The Petzl REEVE is an integrated carriage pulley designed for rescue systems on tensioned highlines. Combining two pulleys with a rigging plate in one compact unit, it helps reduce the number of connectors required and keeps the overall system height to a minimum.

Two large-diameter sheaves mounted on sealed ball bearings provide smooth, efficient movement, while multiple attachment points allow ropes, slings, and carabiners to be connected directly for cleaner system organisation. The moving side plates feature a triple-action opening system and visual locking indicators for added operational security.

The Details

• Integrated carriage pulley for rescue on tensioned highlines.
• Combines two pulleys and a rigging plate in one compact unit.
• Helps reduce the number of connectors and overall system height.

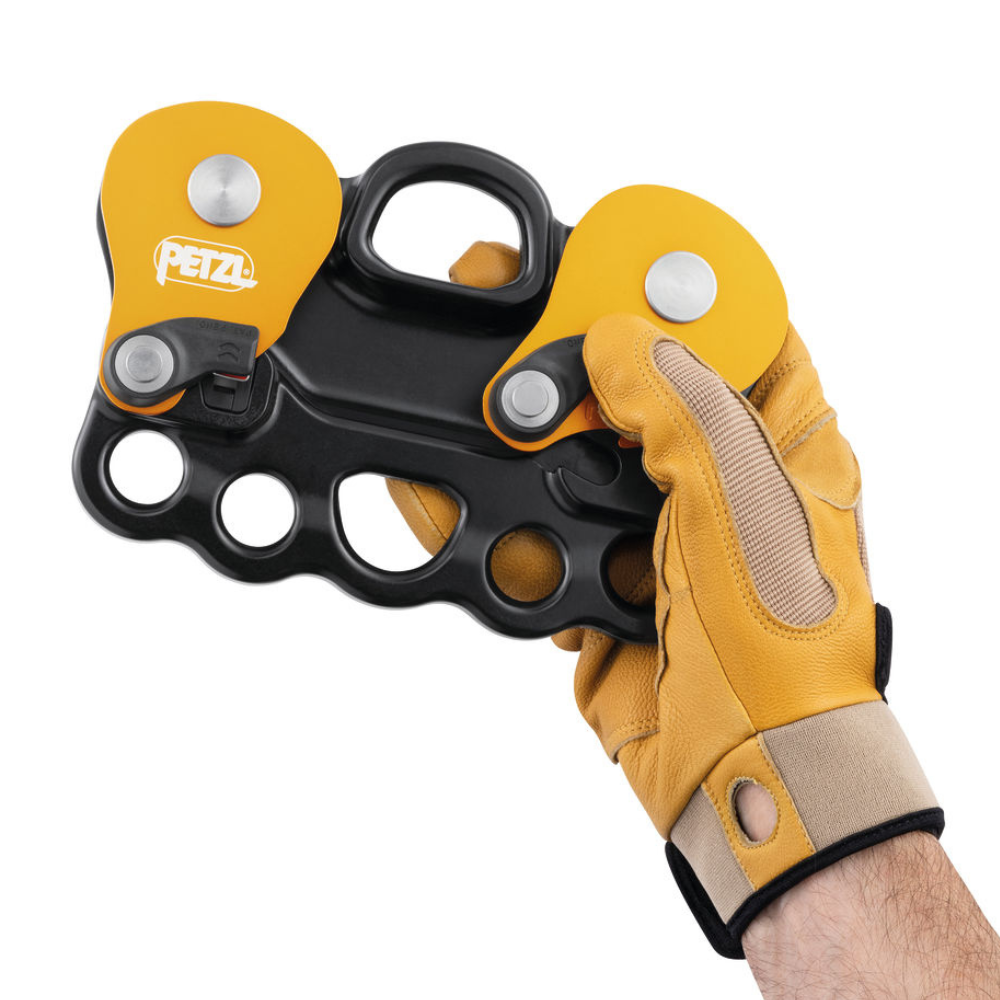

• Triple-action opening side plates can be operated while wearing gloves.
• Red indicators provide a visual warning if the side plates are not correctly locked.
• Two 38mm sheaves mounted on sealed ball bearings provide smooth movement.
• Efficiency: 95%.
• System can be pre-rigged before installation on the main line.

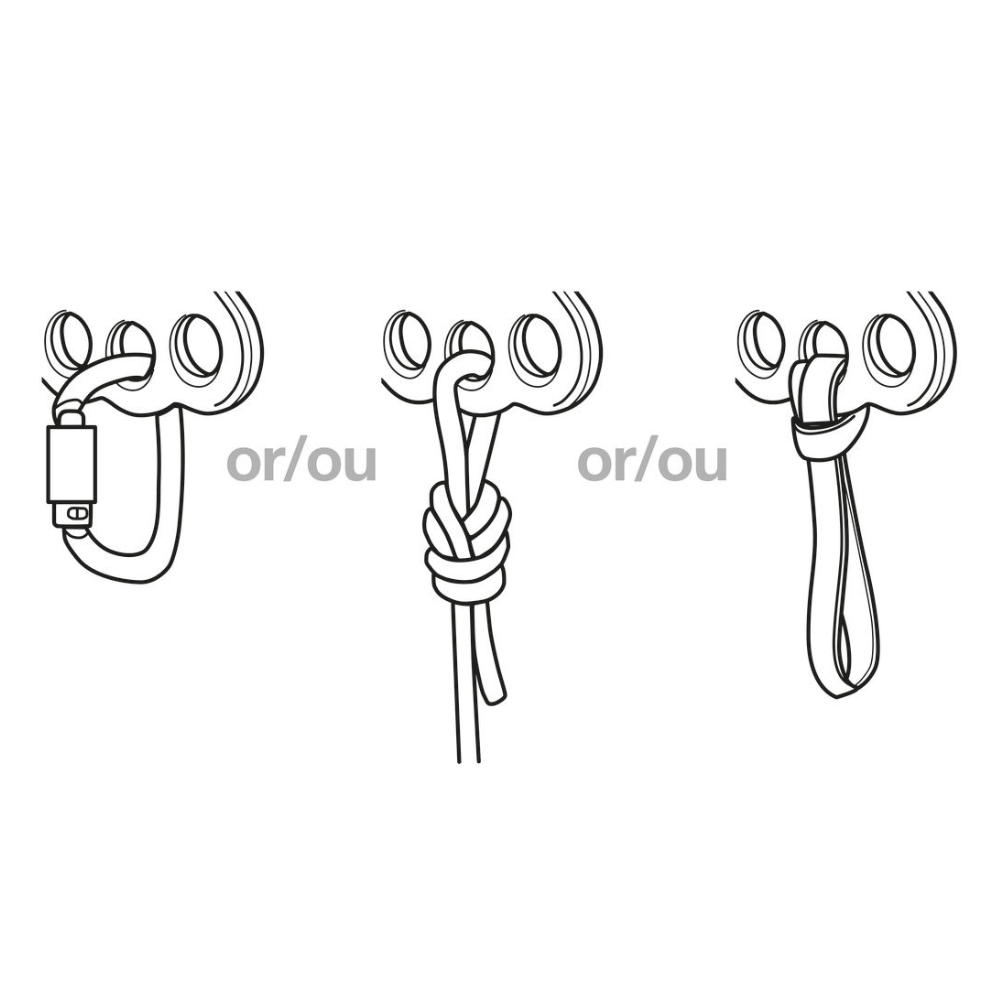

• Multiple attachment points allow direct connection of ropes, slings, and carabiners.
• 19mm attachment holes accommodate the locking sleeves of most carabiners.
• Odd number of attachment holes helps centre and balance the system.
• Can be used in redundant configurations with a second REEVE pulley.

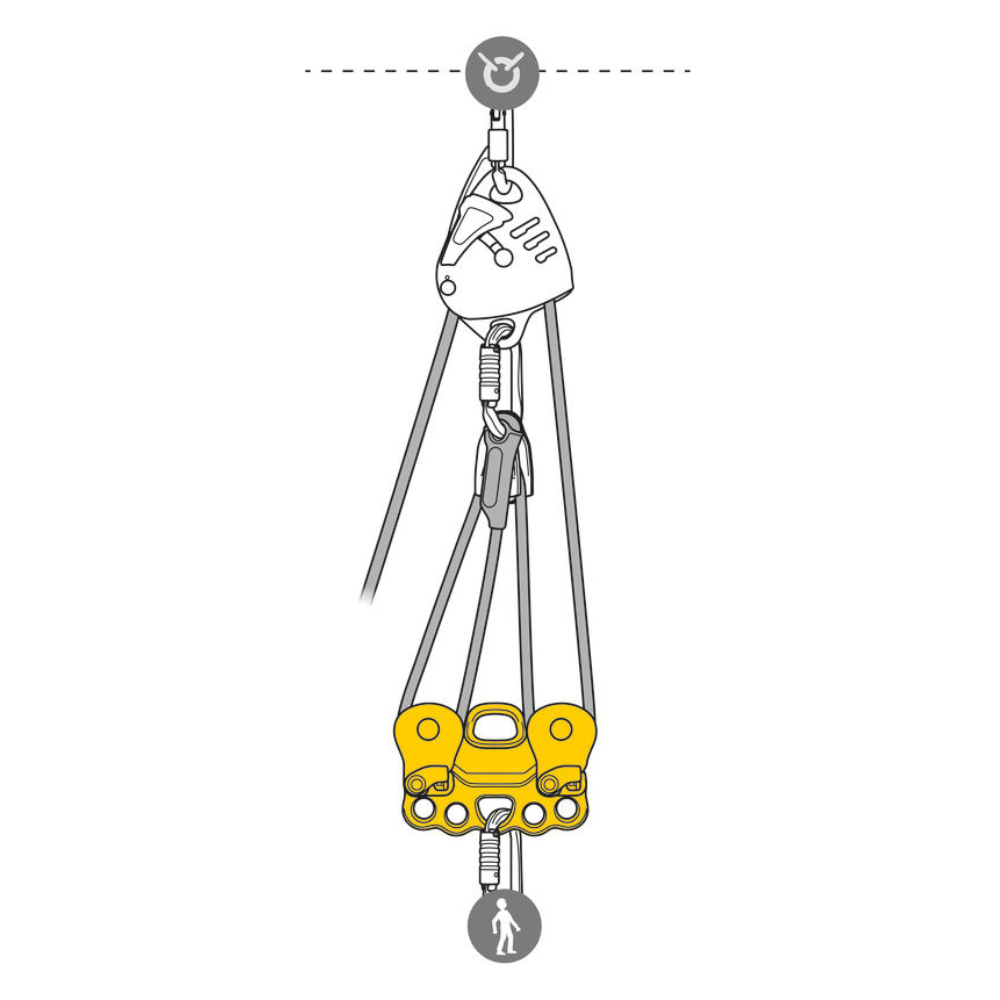

• Can also be incorporated into hauling systems.

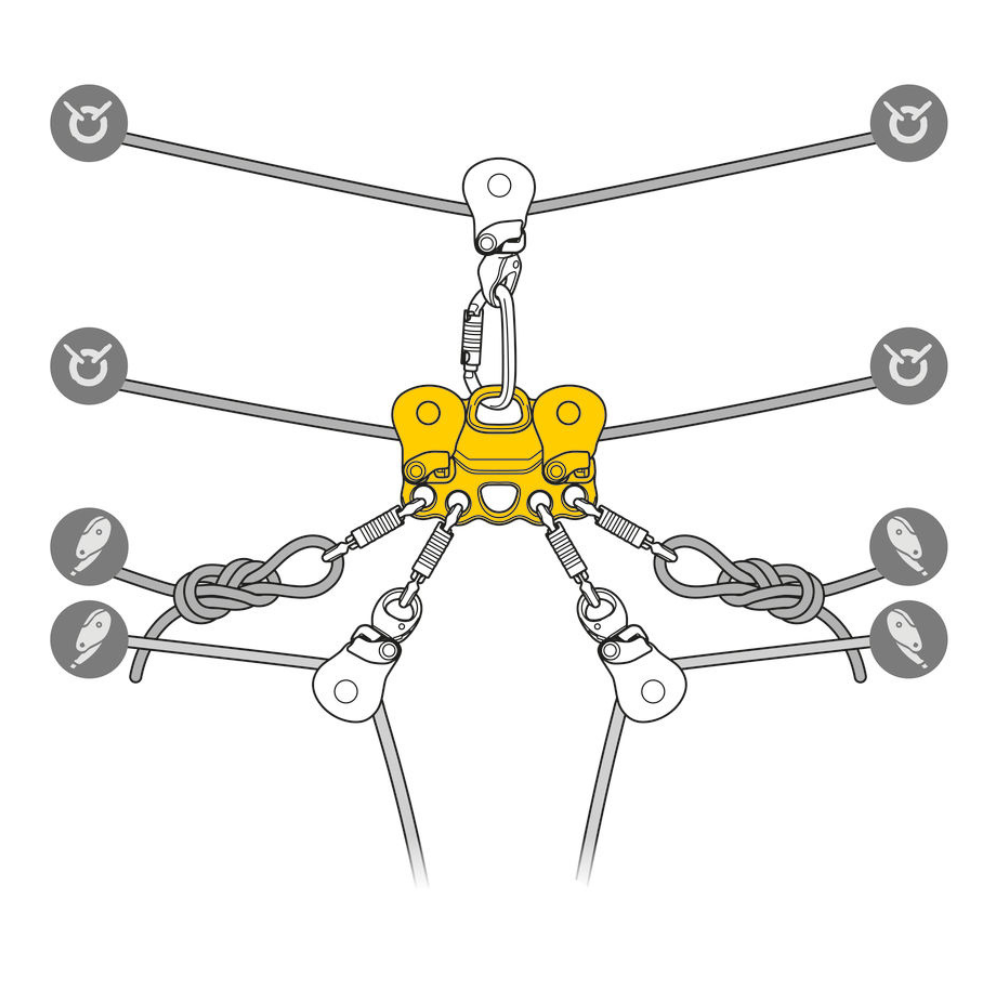

• Allows connection of up to three people at the same time.
• Compatible with ropes from 7-13mm diameter.
• Working load limit: 8kN.
• Breaking strength: 36kN.
• Materials: Aluminium, stainless steel, and nylon.
• Weight: 650g.
• Certified to CE EN 12278, NFPA 2500 General Use and XF 494: FZL-H-T 9.5/13.
