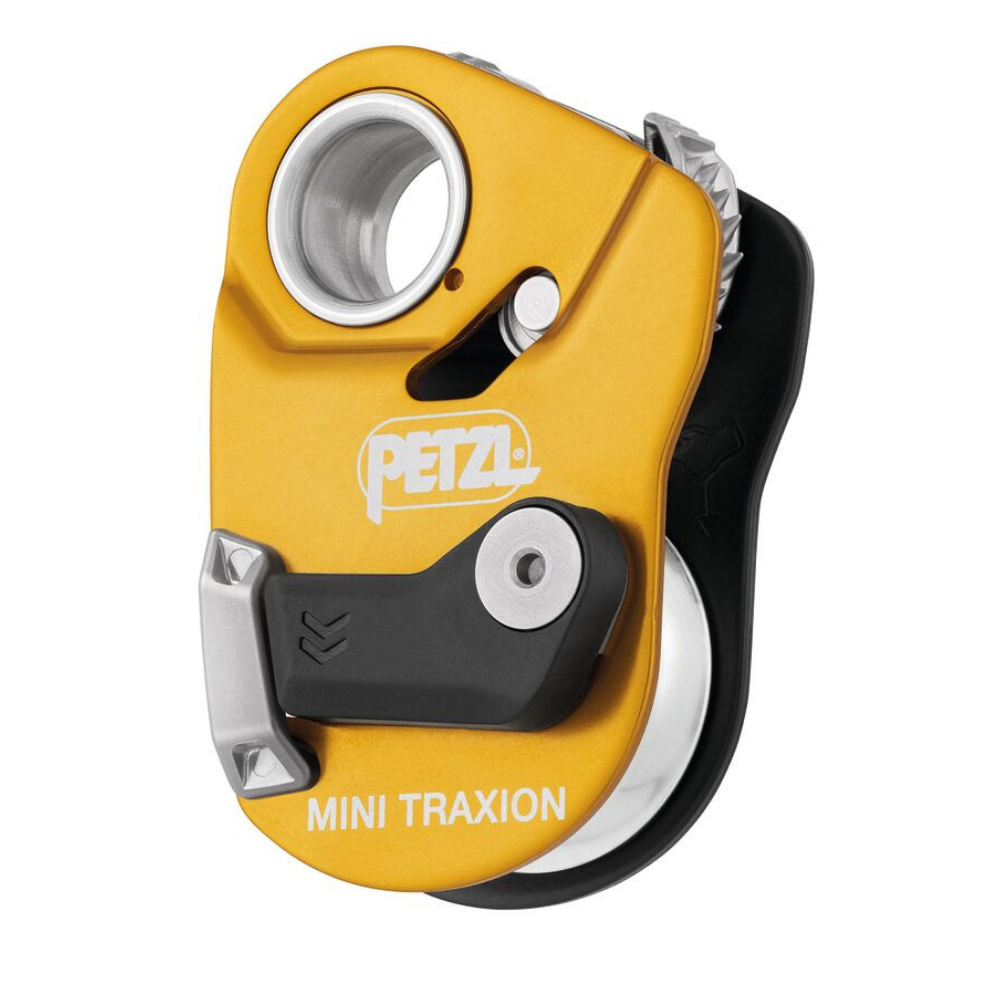

Petzl Mini Traxion

The Petzl MINI TRAXION is a compact, high-efficiency progress-capture pulley designed for hauling mid-weight loads in rescue, rope access, and technical rope systems. Its small footprint helps reduce weight and bulk, while the moving side plate can be opened even when the device is already connected to the anchor.

A medium-diameter aluminium sheave mounted on sealed ball bearings provides excellent efficiency, while the toothed cam offers reliable progress capture across a wide range of rope conditions.

The Details

• Compact progress-capture pulley for haul systems.
• Suitable for technical rescue, rope access, and hauling mid-weight loads.
• Triple-action opening system allows quick operation, even while wearing gloves.
• Rope can be installed while the pulley remains connected to the anchor.
• Red indicator provides a visual warning when the moving side plate is unlocked.
• Side plate design helps protect the rope path.
• Aluminium sheave mounted on sealed ball bearings for high efficiency.
• Efficiency: 93%.
• Toothed cam with self-cleaning slot performs reliably on dirty or frozen ropes.
• Cam can be locked in the raised position for use as a simple pulley.
• Cam includes a hole for attaching a remote control cord.
• Compatible with ropes from 7-11mm diameter.
• Sheave diameter: 32mm.
• Pulley breaking strength: 20kN.
• Rope clamp breaking strength: 4kN.
• Materials: Aluminium, stainless steel, and nylon.
• Weight: 150g.

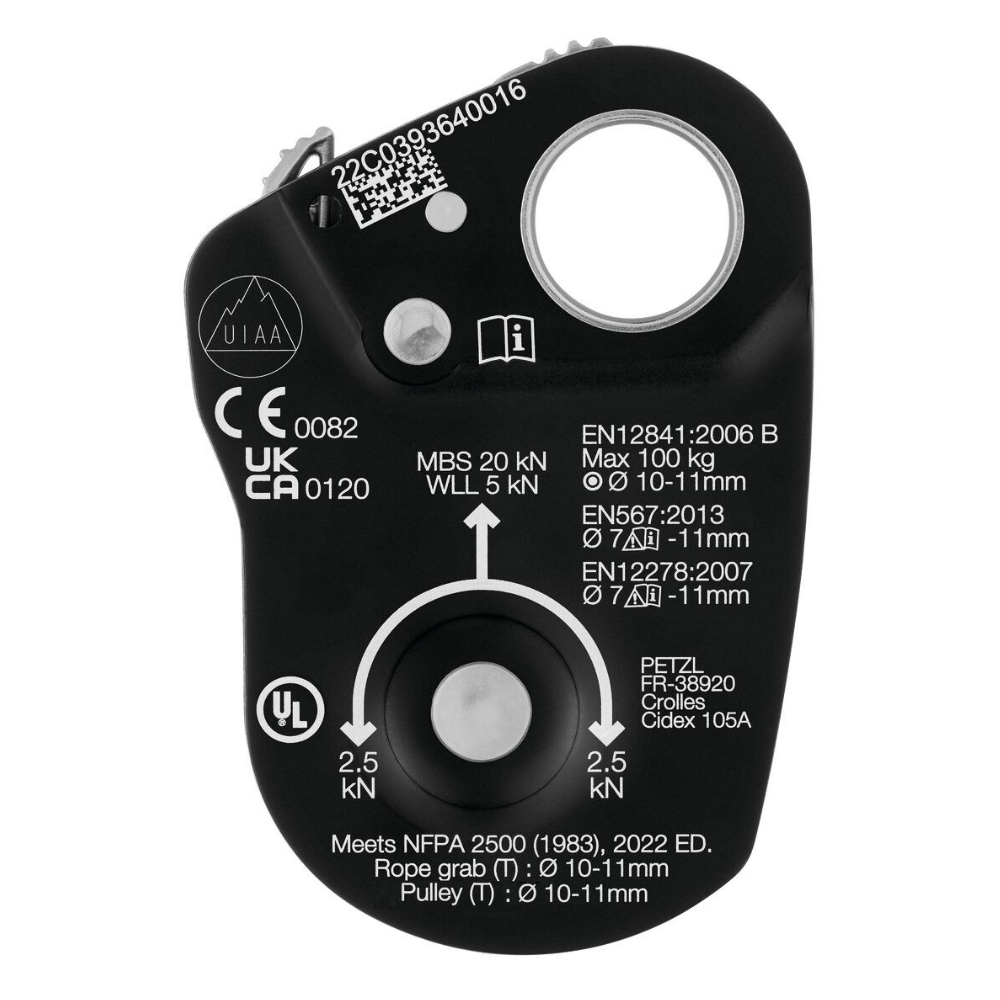

• Certified to CE EN 567, CE EN 12278 and CE EN 12841 Type B.
• NFPA 2500 Technical Use certified as both a pulley and rope grab.
• Product reference: P054AA00.
• Guarantee: 3 years.
