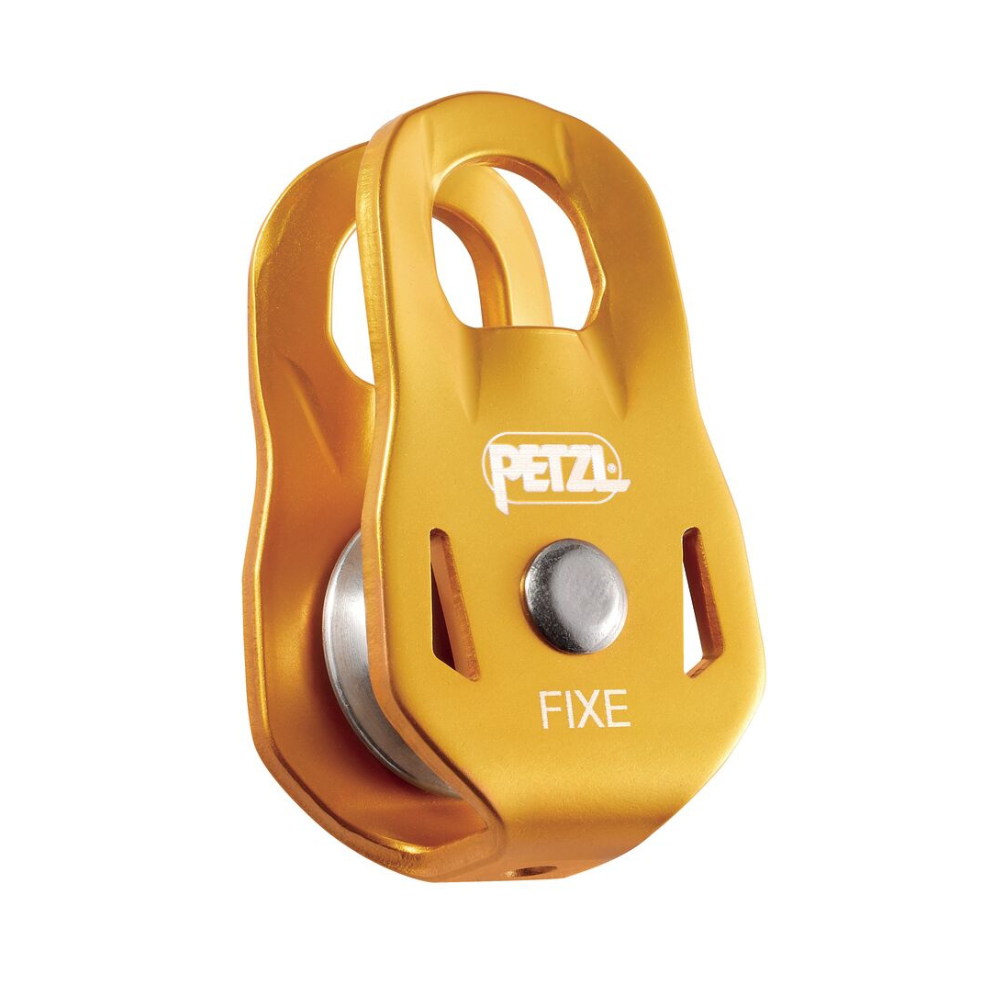

Petzl FIXE

The Petzl FIXE is a compact and versatile pulley designed for building haul systems and creating load deviations. Its fixed side plates allow quick rope installation and make it easy to combine with a rope clamp for simple, efficient system setup.

The sheave runs on self-lubricating bushings to provide reliable efficiency, while the attachment holes are shaped to allow compatible carabiners to rotate freely.

The Details

• Designed for haul systems and load deviations.
• Fixed side plates allow quick and easy rope installation.
• Easy to combine with a rope clamp.
• Sheave mounted on self-lubricating bushings.
• Efficiency: 71%.
• Attachment holes allow compatible European-standard carabiners to rotate.
• Suitable for use with carabiners similar to the Petzl OK or WILLIAM.
• Compatible with ropes from 6-13mm diameter.
• Sheave diameter: 21mm.
• Maximum working load: 5kN.
• Breaking strength: 23kN.
• Weight: 98g.
• Materials: Aluminium and stainless steel.
• Certified to CE EN 12278, UIAA and XF 494 Light.
• Guarantee: 3 years.

Declaration Of Conformity
