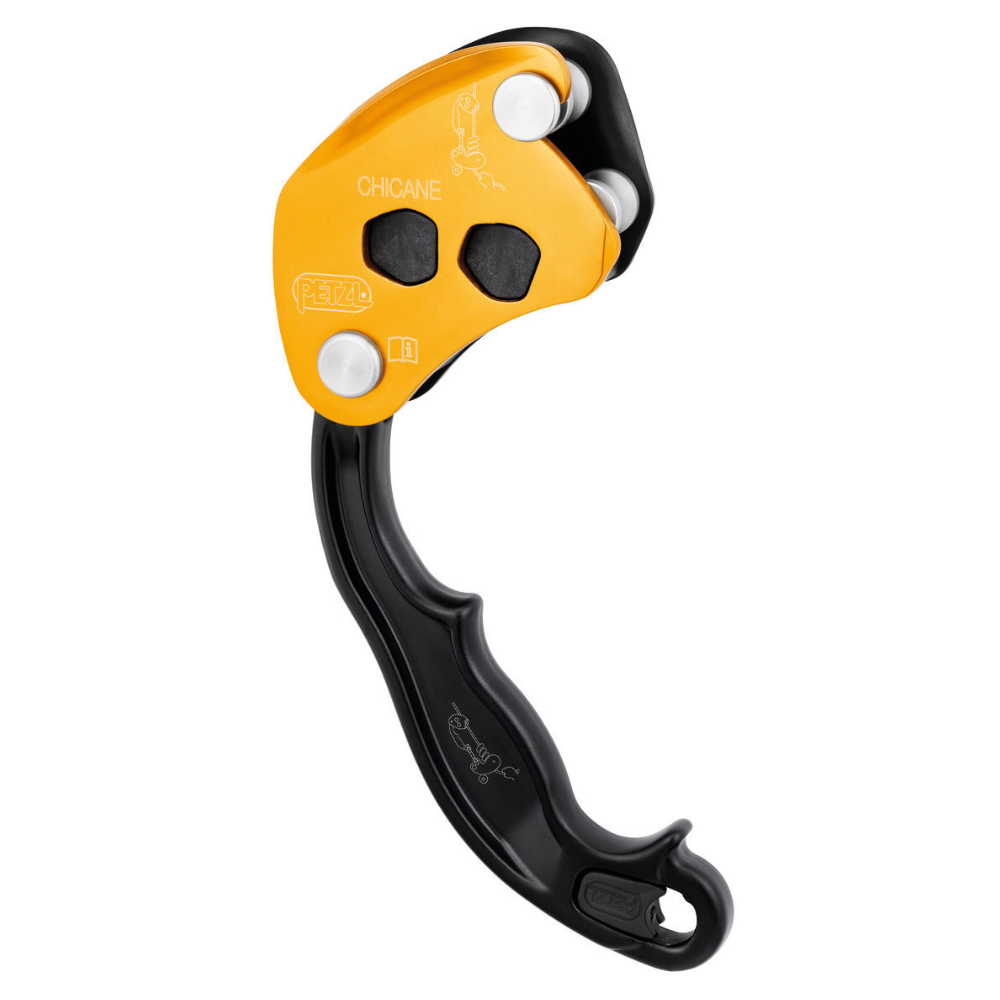

Petzl Chicane Additional Brake

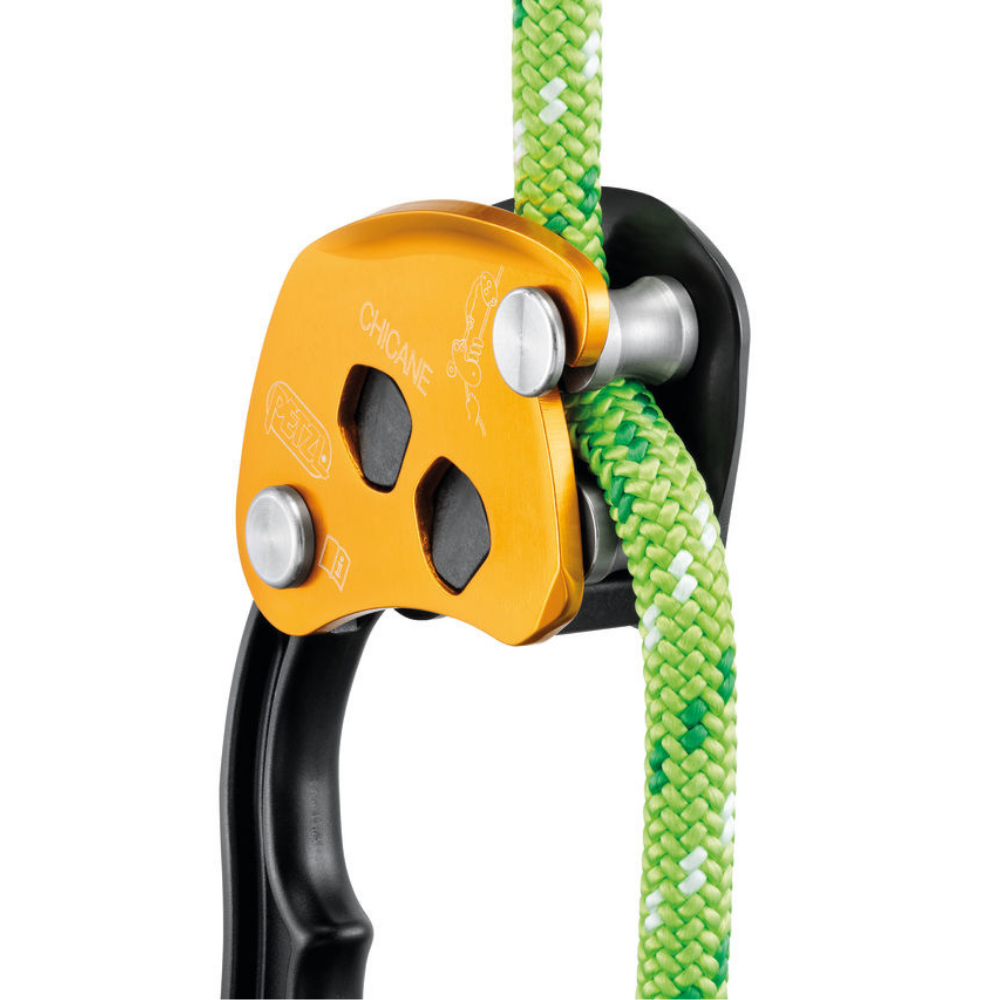

The Petzl CHICANE is an auxiliary braking device designed to allow ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction during descents while maintaining smooth rope movement during ascent.

Its ergonomic handle improves control and handling while limb walking, while the openable side plate allows quick installation onto the rope. Two replaceable friction pins provide consistent braking performance and help extend the service life of the device.

The Details

• Allows Petzl ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes.
• Provides continuous additional braking through two friction pins.
• Designed for smooth rope movement during ascent.

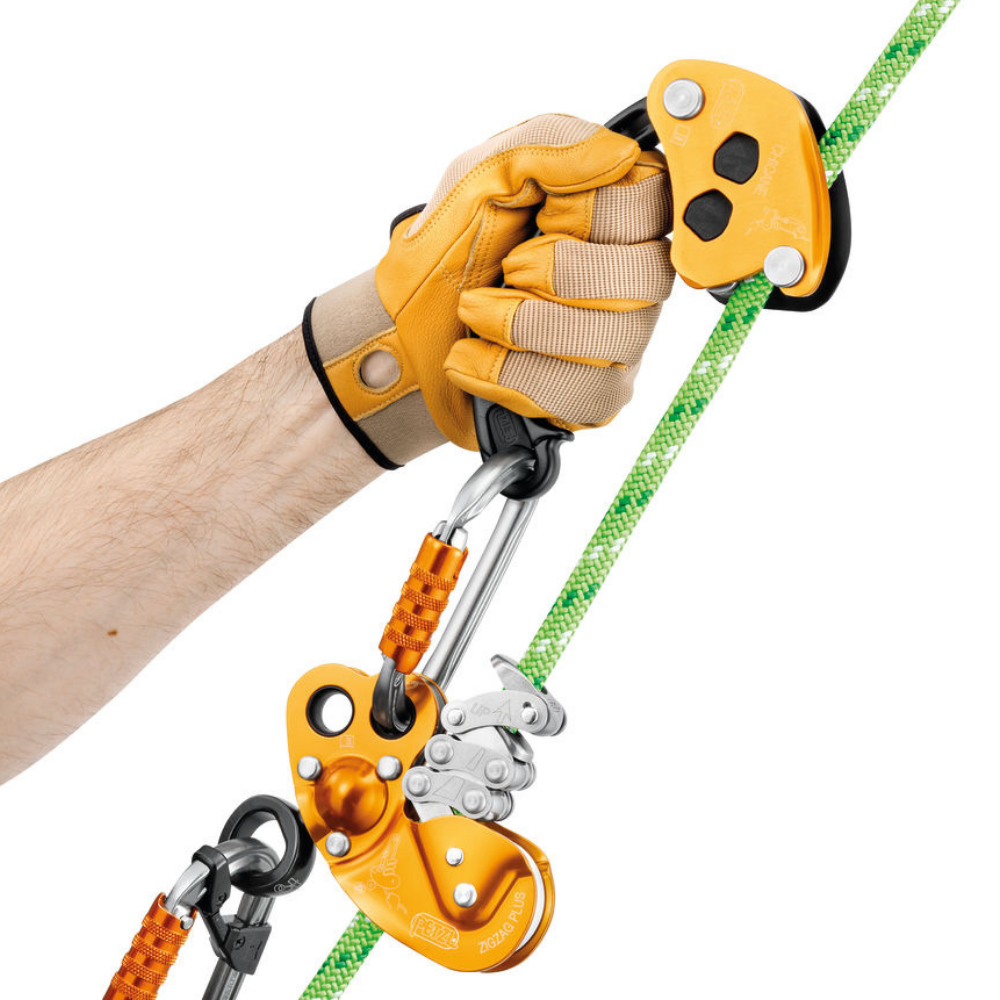

• Ergonomic handle provides comfortable grip and assists movement while limb walking.

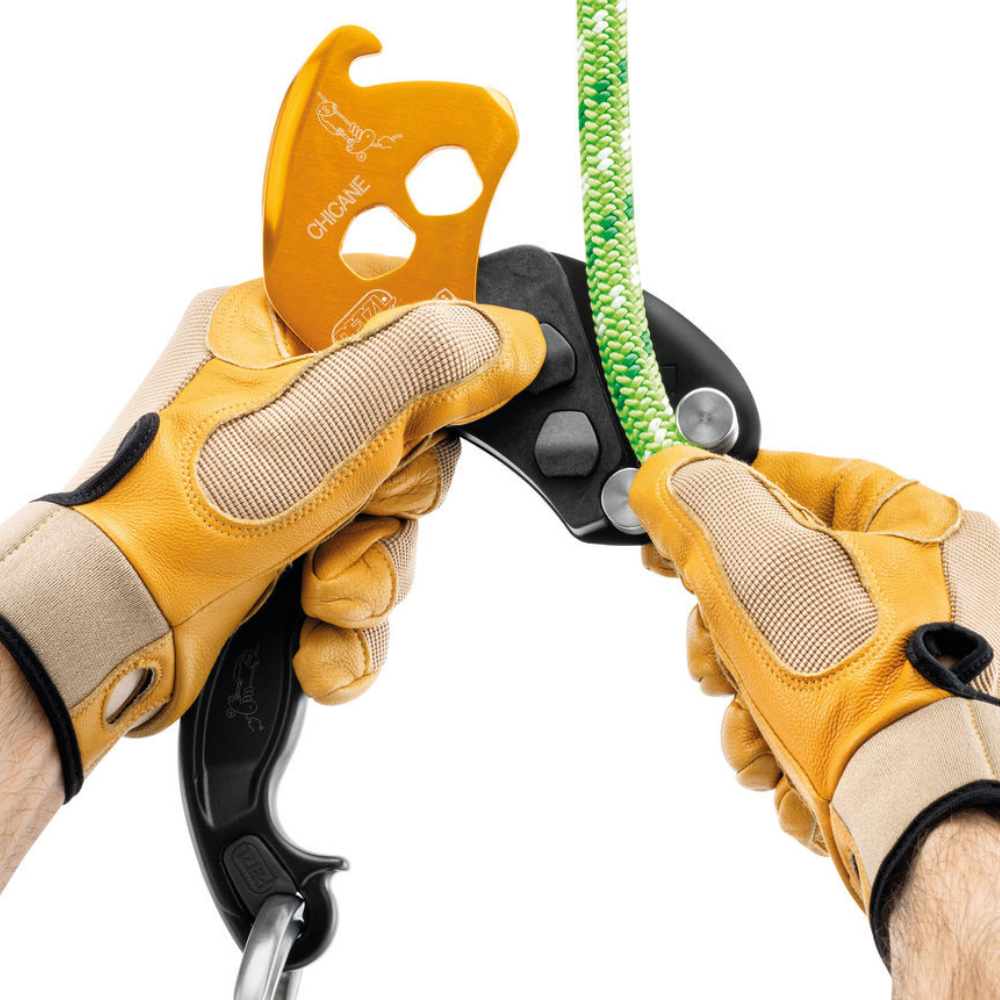

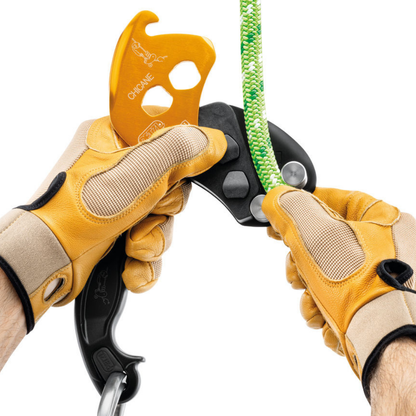

• Openable side plate allows quick and easy installation on the rope.
• Triple-action unlocking system helps reduce the risk of accidental side plate opening.

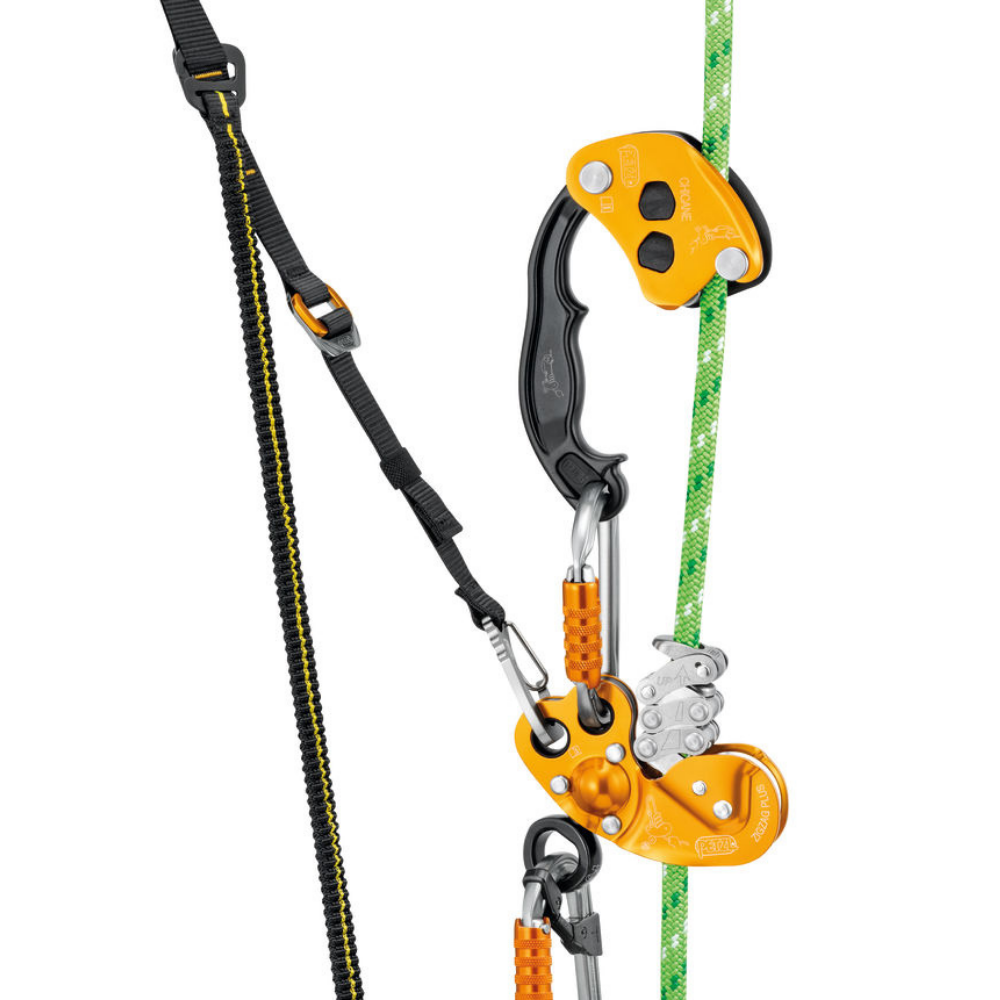

• Connects to the upper attachment hole of the mechanical Prusik.
• Used with a Petzl Am'D or OK connector, sold separately.
• Replaceable friction pins help extend the working life of the device.
• Compatible with EN 1891 Type A low-stretch kernmantle ropes.
• Compatible rope diameter: 11.5-13mm.
• Working load limit: 140kg.
• Materials: Aluminium, steel, and nylon.
• Weight: 255g.
• CE certified.
• Allows the user to work in compliance with ANSI Z133.
