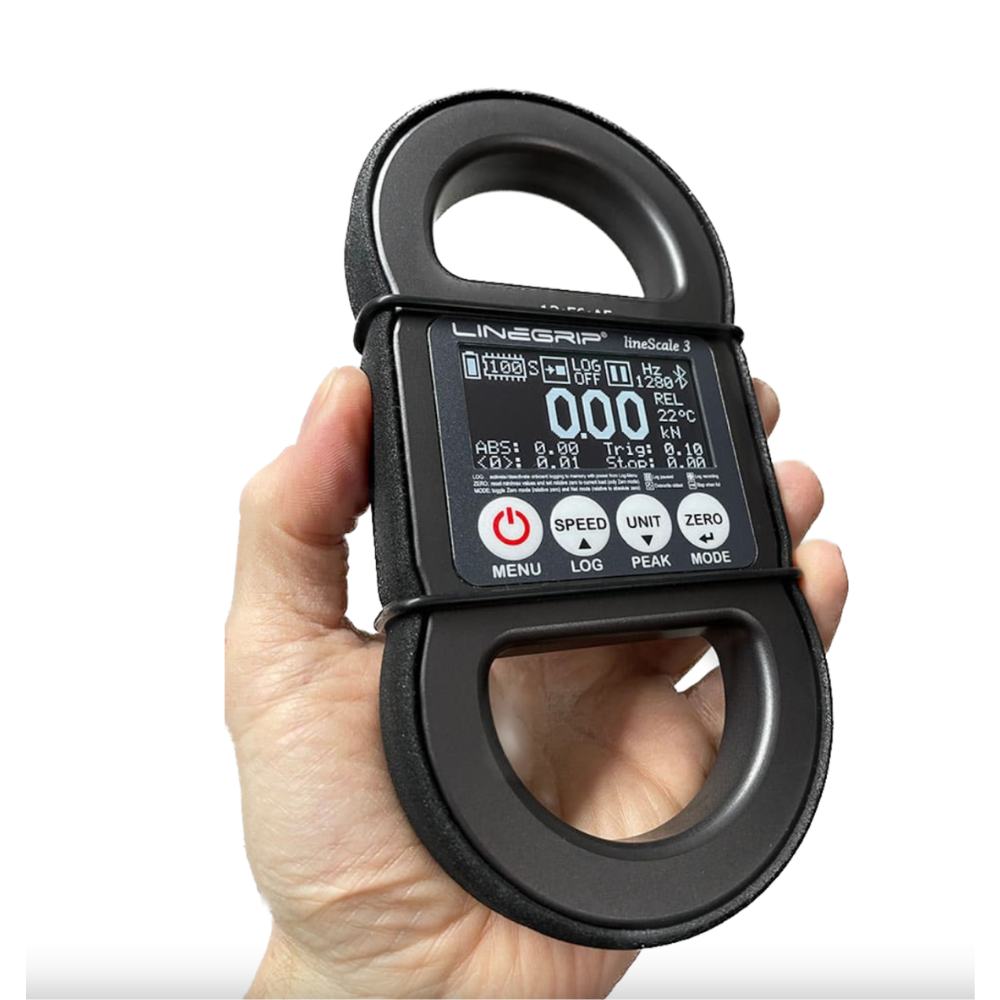

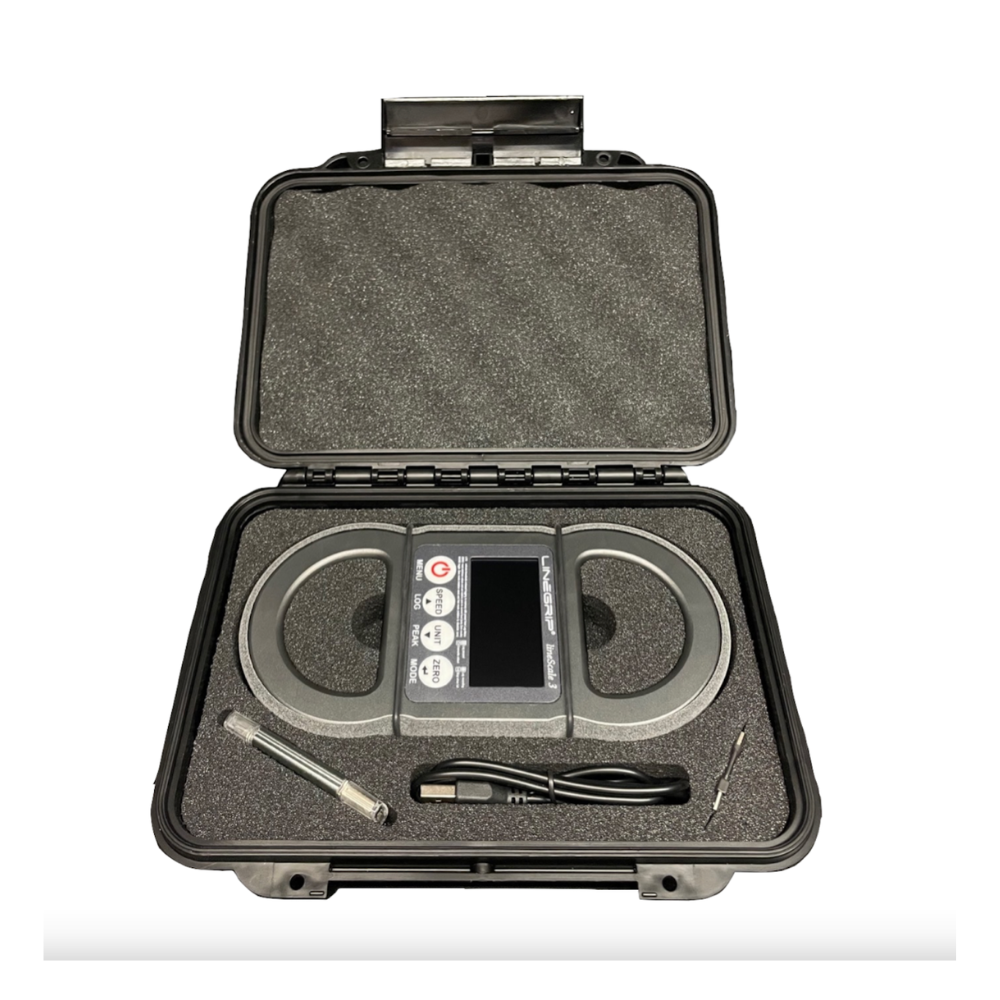

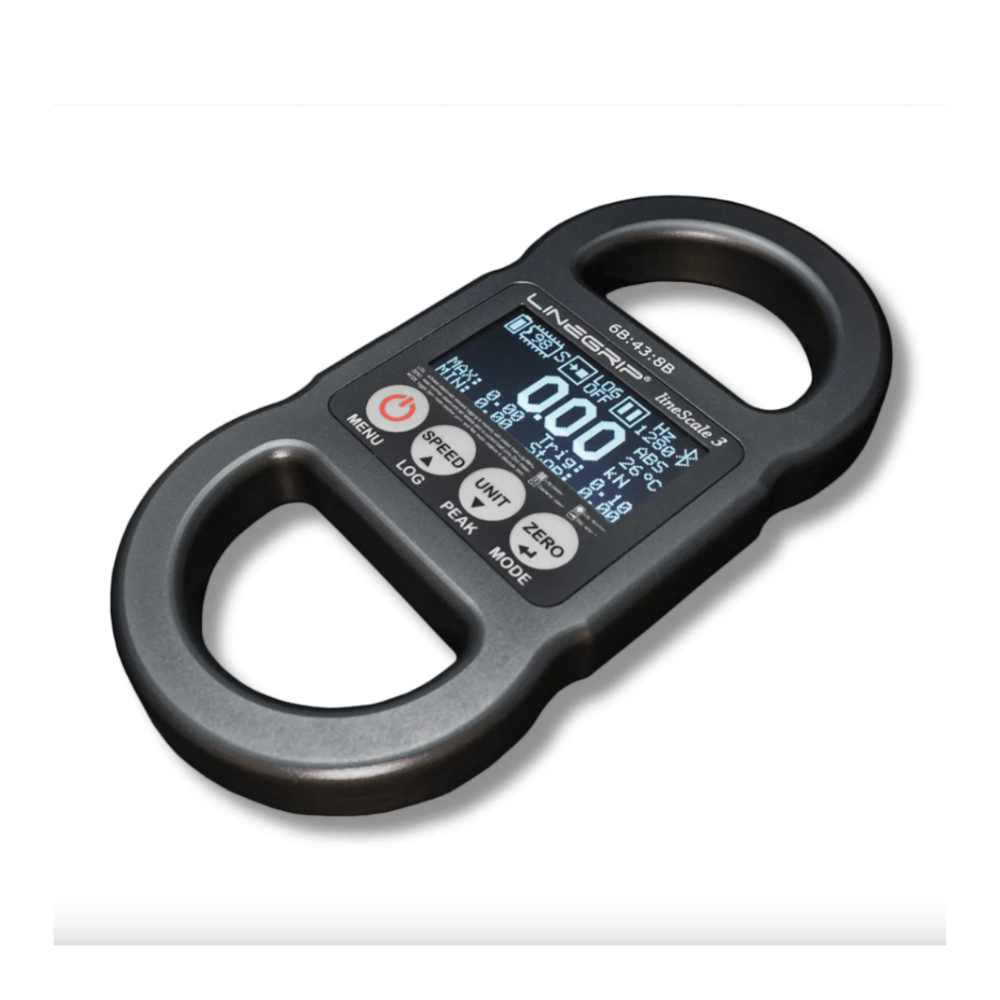

LineScale-3i Load Cell with Tough Case

The LineGrip LineScale-3i Load Cell is a high-performance digital load measuring device designed for rope access, rescue, and rigging professionals. With Bluetooth connectivity, onboard data logging, and an impressive 1280 Hz sampling rate, it accurately captures both static and dynamic loads, making it ideal for testing, inspections, and advanced rope system analysis.

The Details

• Suitable for professional rope access, rescue, rigging, and load testing applications.
• Recommended maximum working load of 10kN with PPE certification.
• Working Load Limit (WLL): 30kN.
• Minimum Breaking Strength (MBS): 90kN (tested to failure at 140kN).
• High-speed 1280 Hz sampling rate captures dynamic loading events.
• Bluetooth connectivity allows live load monitoring via the LineGrip smartphone app.
• Stores up to 50 hours of onboard data logging, downloadable via USB flash drive.
• Measures force in kN, kgf, and lbf.
• High-resolution 24-bit A/D converter with 1kg resolution and ±0.5% accuracy between 3-15kN.
• Machined from high-strength aviation-grade aluminium for exceptional durability.
• Large cross-load resistant attachment eyes with rounded edges for easy connection.
• Dual Micro-USB ports support battery charging, firmware updates, PC connection, and data transfer.
• Rechargeable battery provides up to 24 hours of operation with Bluetooth enabled or up to 50 hours without.
• Splash and rain resistant for reliable outdoor use.
• Compact design measuring 190 x 90 x 20mm.
• Weight: 520g (including batteries).
• Designed in Germany and assembled in China.

Certifications

• CE 1019.
• PPE-R/11.114 V3:2021.
• UIAA 130 V1:2021 (25kN).
