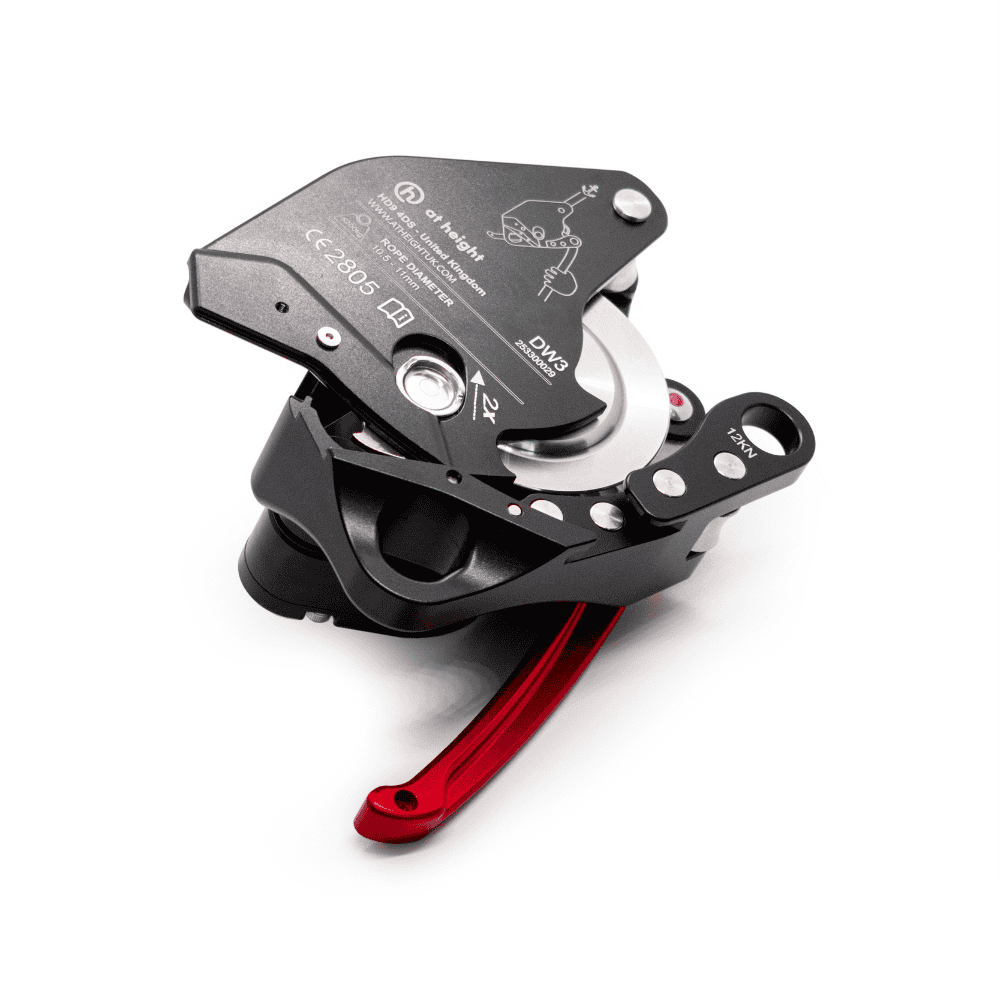

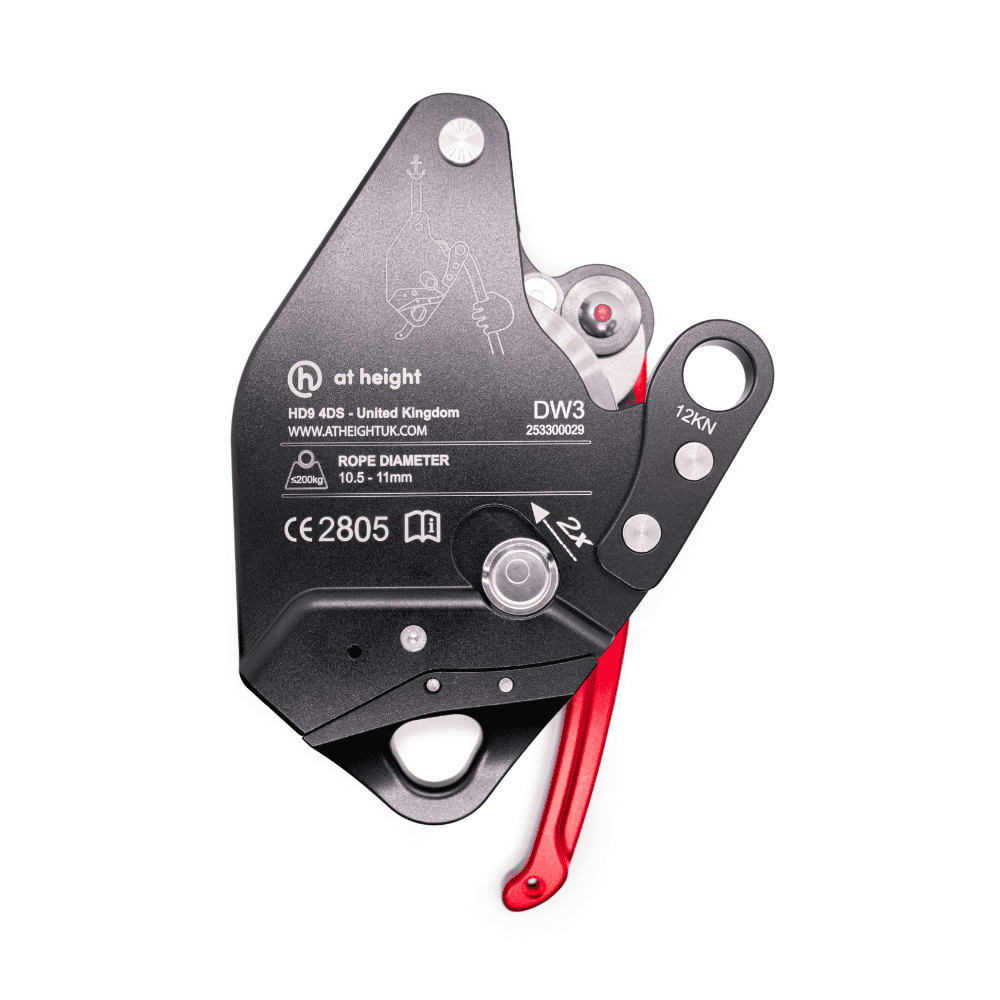

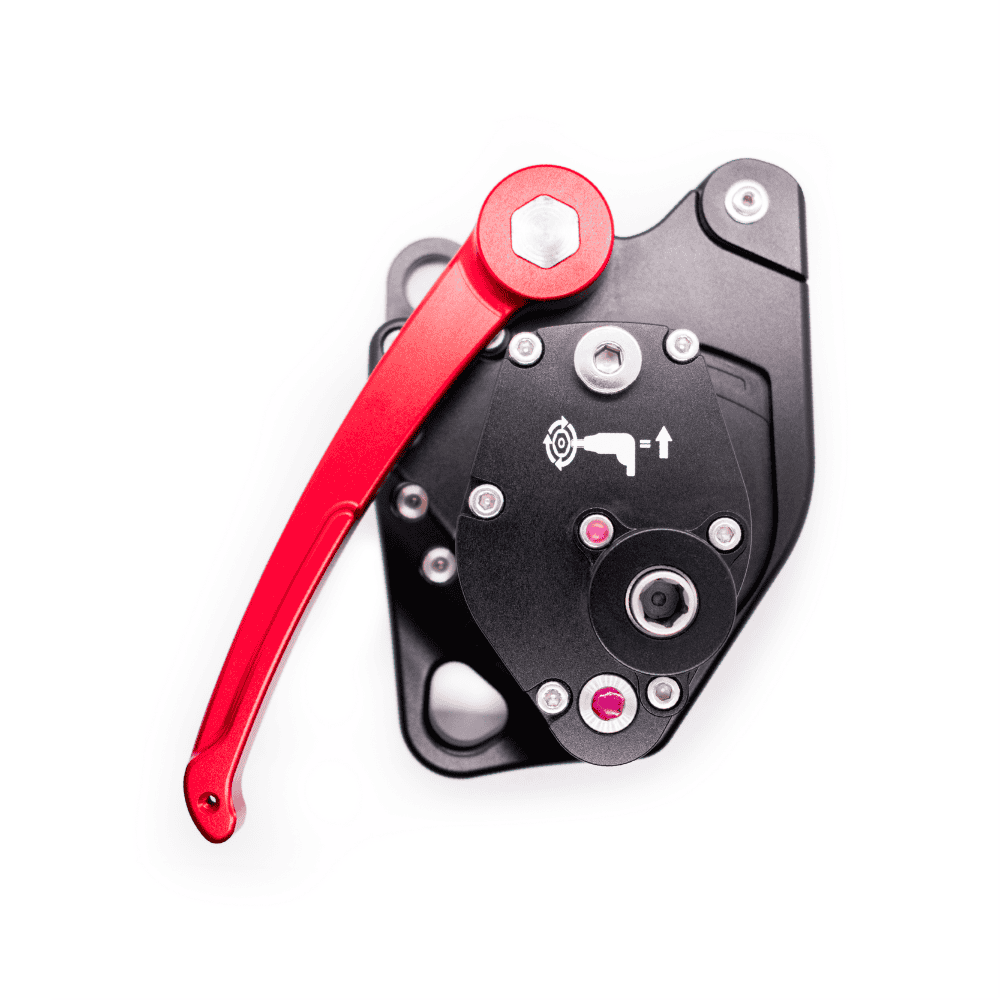

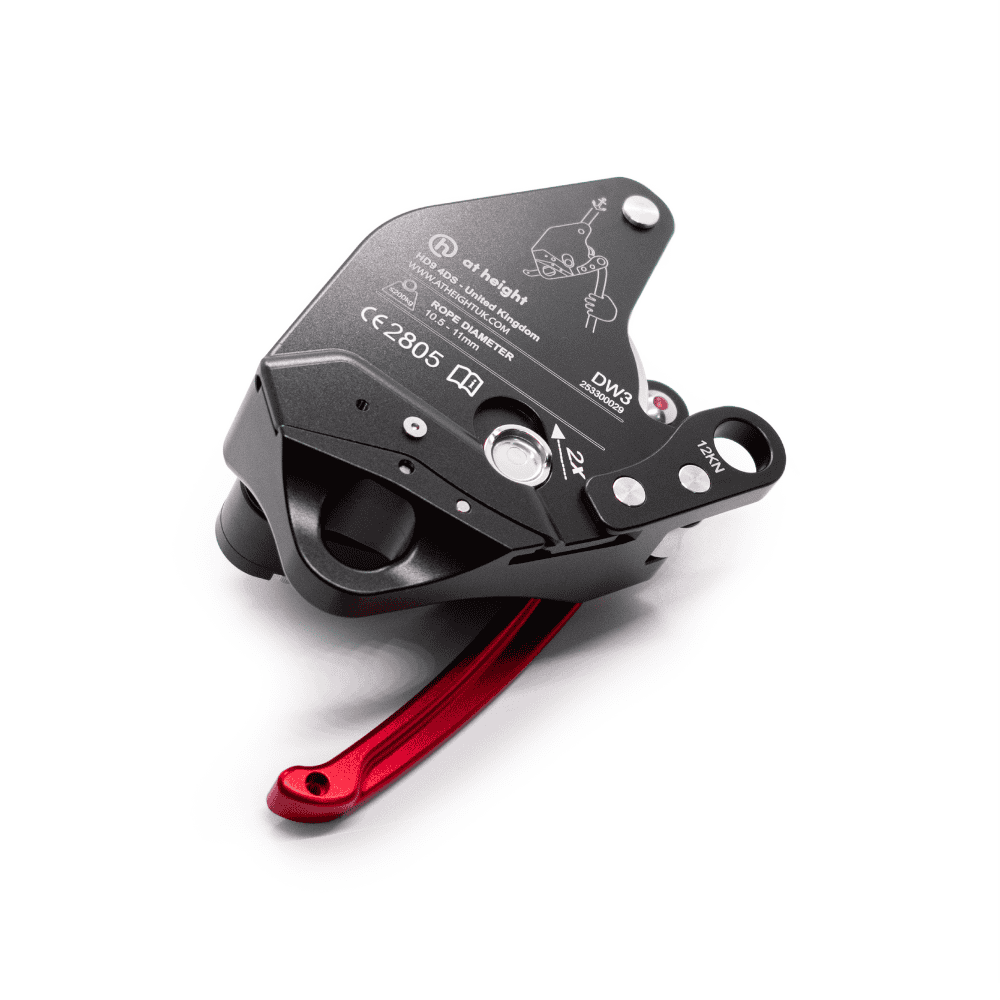

At Height Drill Winch

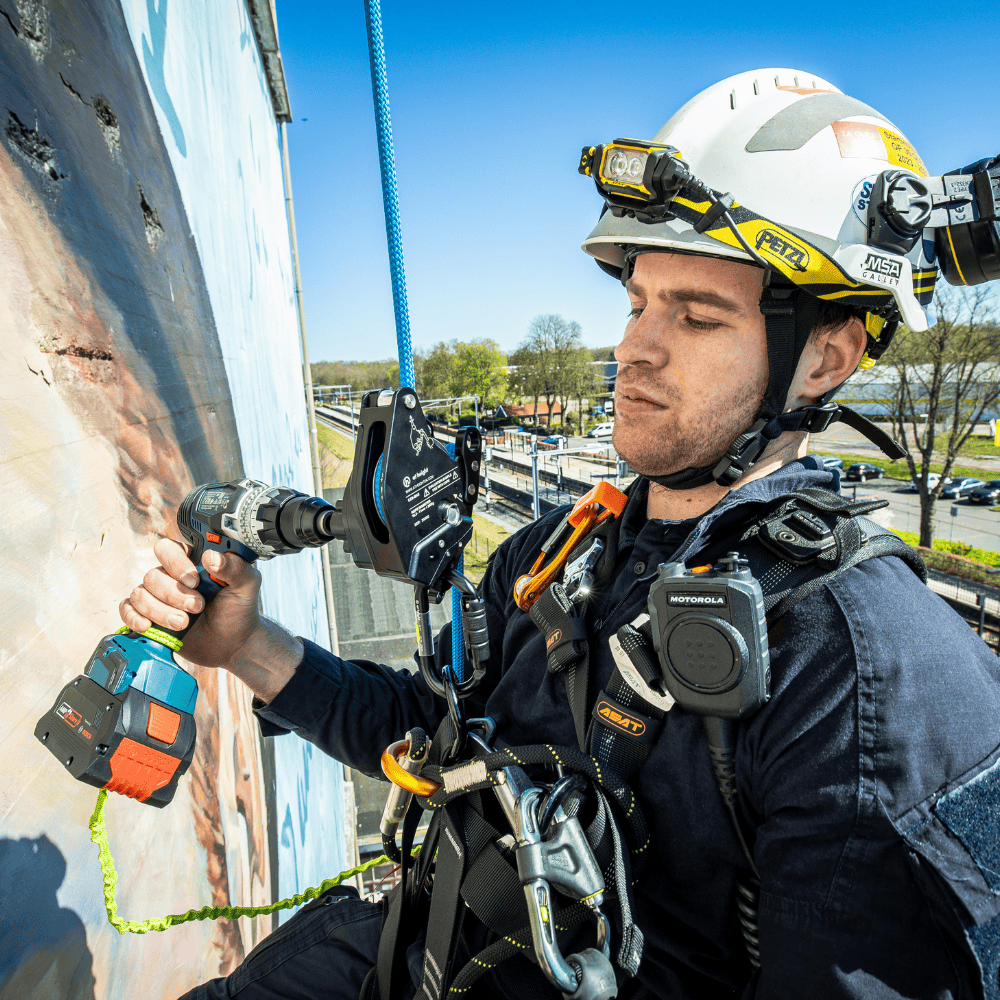

The At Height DW3 Drill Winch is a compact and versatile lifting device designed for raising and lowering personnel and materials in a range of industrial applications. Suitable for work at height, rescue, rigging, and material handling, the DW3 offers reliable performance in a lightweight design and is supplied ready for transport in a durable hard case.

The Details

• Suitable for lifting and lowering both personnel and materials.
• Ideal for work at height, rescue, rigging, and material handling applications.
• Certified in accordance with Machinery Directive 2006/42/EC Annex 4.
• Maximum rated load of 200kg when used with 10.5mm or 11mm EN1891 Type A rope.
• Compatible with 10.5mm and 11mm EN1891 Type A rope.
• 8:1 gearing provides efficient lifting performance.
• Becket Minimum Breaking Strength (MBS): 12kN.
• Manufactured from lightweight aluminium and stainless steel.
• Compact dimensions: 160 x 120 x 85mm.
• Lightweight design weighs just 1.5kg.
• Individually serial numbered for traceability.
• Supplied in a durable hard plastic carry case with spare hex keys.
• Recommended for use with a brushless drill rated above 100Nm torque.
