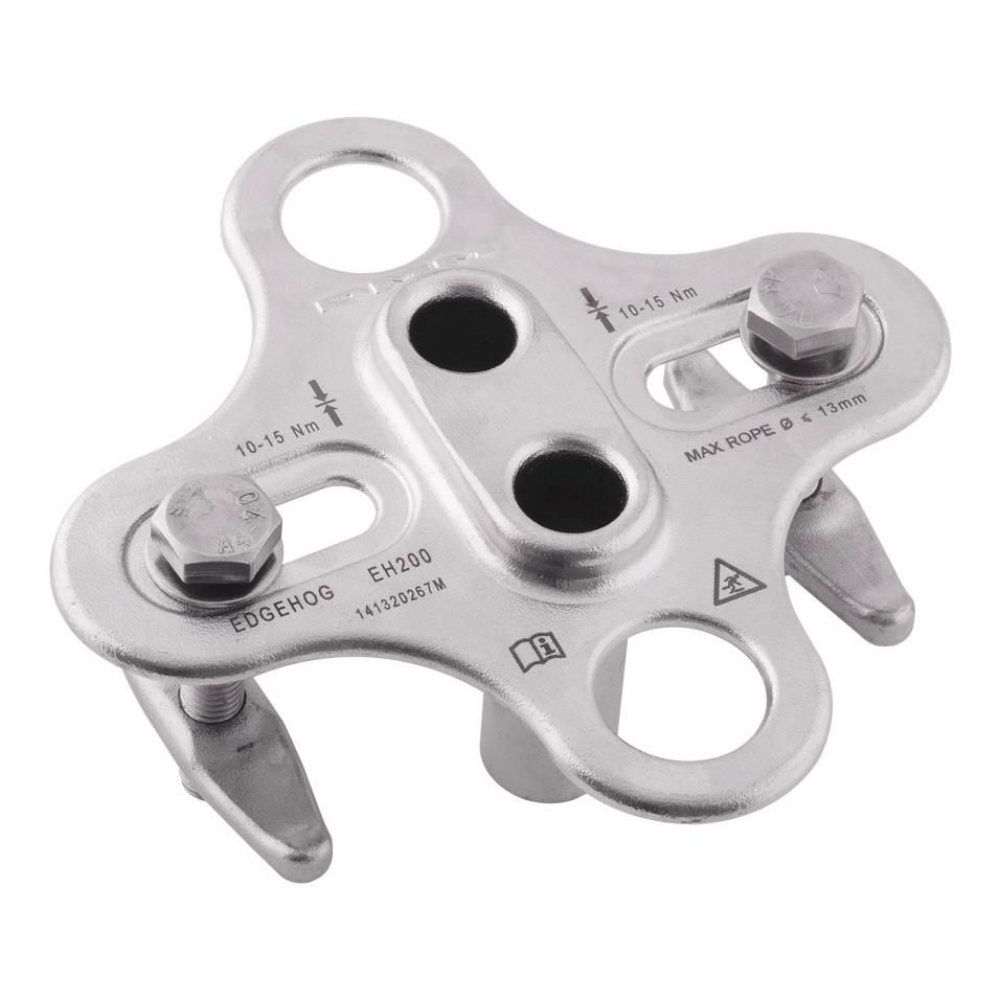

DMM Edgehog Double

The DMM Edgehog Double is a durable rope protection and routing solution designed for rope access applications where ropes need to pass through industrial deck grating.

Constructed from marine-grade 316 stainless steel, it is built to withstand demanding industrial and offshore environments while providing smooth, rope-friendly contact surfaces. Its low-profile design helps minimise trip hazards, while adjustable fixings allow it to suit a range of grating sizes.

The Details

• Designed for rope access applications involving deck or Kennedy grating.
• Features 2 rope slots for managing multiple rope lines.
• Rounded, rope-friendly edges help reduce wear on ropes.
• Constructed from marine-grade 316 stainless steel for excellent corrosion resistance.
• Well suited to offshore, industrial, refinery and chemical plant environments.
• Low-profile design helps minimise trip hazards.
• Adjustable fixing bolts accommodate different grating configurations.
• 17 mm spanner required for adjustment.
• Integrated clip-in point for convenient transportation.
• Suitable for ropes up to 13 mm diameter.
• Weight: 715 g.

• Minimum grating opening: 24 x 58 mm.
• Maximum grating depth: 45 mm.
• Dimensions: 70 x 150 x 150 mm.
